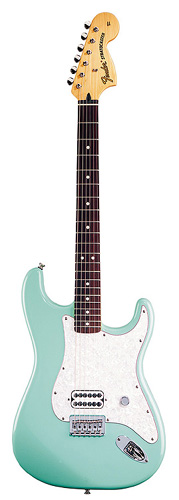

Tom Delonge Strat
MODEL NUMBER 013-8200-(Color#)
SERIES Artist Signature Series
BODY Alder
NECK Maple,
(Polyurethane Finish)
FINGERBOARD Rosewood, 7.25" Radius (184 mm)
NO. OF FRETS 21 Medium Jumbo Frets
SCALE LENGTH 25.5" (648 mm)
WIDTH AT NUT 1.650" (42 mm)
HARDWARE Chrome
MACHINE HEADS Fender/Ping Vintage Style Tuning Machines
BRIDGE Hard Tail American Strings-Thru-body Bridge with Stainless Steel Saddles
PICKGUARD 3-Ply White Pearloid
PICKUPS 1-Seymour Duncan Invader Humbucking Pickup
PICKUP SWITCHING None
CONTROLS Volume
COLORS (304) Daphne Blue,
(306) Black,
(357) Surf Green,
(363) Graffitti Yellow,
(Polyester Finish)
STRINGS Fender Super 250L's, Nickel Plated Steel, (.009 to .042), p/n 073-0250-003
UNIQUE FEATURES Tom Delonge Signature on Neck Plate,
Pearl Dot Position Inlays,
Roller String Tree,
Large '70s Headstock,
'70s Decal,
Bullet Truss Rod Adjustment Nut

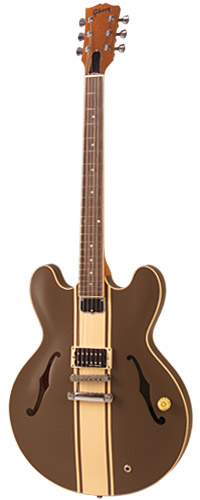

Tom DeLonge Signature
BODY
Size: Maple/Poplar/Maple laminate
Top Species: Maple/Poplar/Maple laminate
Back Species: Maple/Poplar/Maple laminate
Rim Species: 1-piece Maple
Binding: Single-ply top, back

NECK
Species: Mahogany
Profile: 1960 Slim Taper
Peghead Pitch: 17°
Thickness at 1st fret: 0.800"
Thickness at 12th fret: 0.875"
Heel Length: 0.500"
Neck Joint Location: 19th fret
Headstock Inlay: 19

FINGERBOARD
Species: Rosewood
Scale length: 243/4"
Total Length: 18.137"
Nut Width: 111/16"
Width at 12th fret: 2.062"
Frets: 22
Inlays: Pearloid Dot
Binding: Single-ply

HARDWARE
Plating Finish: Nickel
Bridge: Tune-o-matic
Tailpiece: Stopbar
Knobs: Cream Speed
Tuners: Locking Sperzel

ELECTRONICS
Pickups: One Gibson 'Dirty Fingers' exposed-coil humbucker
Bridge Pickup: One Gibson 'Dirty Fingers' exposed-coil humbucker
Controls: One volume control and standard jack

CASE
Exterior: Black smooth levant
Interior: Plush charcoal with satin shroud
Silkscreen: Gold 'Gibson' logo



i got this information from the gibson site
